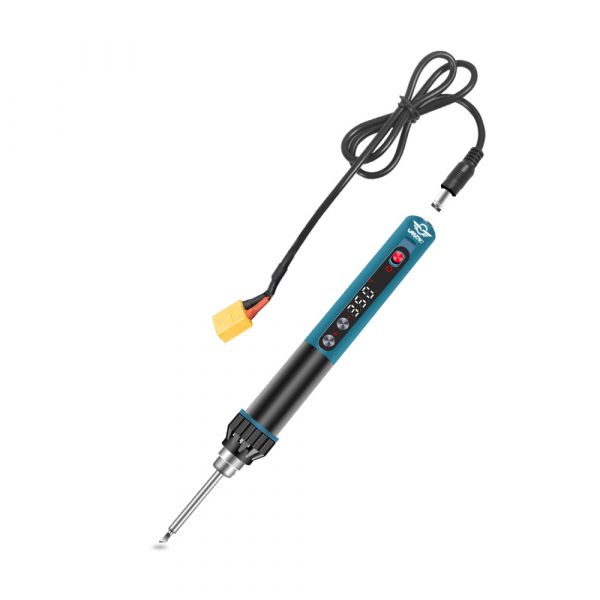

[04100254] FrSky VANTAC Portable Soldering Iron

FEATURES
• A variety of power supply options are available (Such as USB power supply, power bank, car power
supply, adapter, 2S-6S RC battery, etc.)
• Different voltage and power for your choice
• Adopting the T8 series plug in&out integral soldering tip, quick and convenient to replace
• The high-temperature sleeve is made of special materials and heat-insulating technology. The handler is
not hot and comfortable to hold.
• The handle button adopts the embedded design button, which is firm and does not fall off, feels
comfortable and operates freely.
• With the anti-reverse connection protection function.
• You can set the sleep time period freely (1~30min). The sleep temperature drops to 80℃. If you do not
use this soldering iron for 30 minutes, it will automatically shut down.
• Small volume. Three-key design, strong function.
• Recovery temperature is extremely fast, when the voltage reaches 24V, the temperature rises quickly,
and the tin can be melted in 3 seconds.
• Quality heating element. Ultra strong platinum temperature sensitivity.
• Two kinds of temperature show models. (Celsius ℃, Fahrenheit℉).
• Complement value through microcomputer temperature. Error margin less than ± 5℃.
• LED display. Content is clear at a glance.
• The handle is made of special high-temperature resistant material, ESD antistatic treatment.
• Professional (function password lock, sleep function, with T8M series soldering iron head).

SPECIFICATIONS
• Size: 102x30x183mm
• Weight: 50g
• Soldering tip: T8 Series
• Temperature Compensation: -50℃ ~50℃
• Temperature Range: 80~450℃ (176~842℉)
• Sleep Time: 1~30Min
• High-temperature resistance set of head: GP9
• Voltage Range: DC5V≥2.1A~24V

PACKAGE LIST
• Soldering iron *1
• Patch cord *1
• Soldering iron stand *1
• Small hexagon wrench *1
• User manual *1
• Guarantee certificate *1
