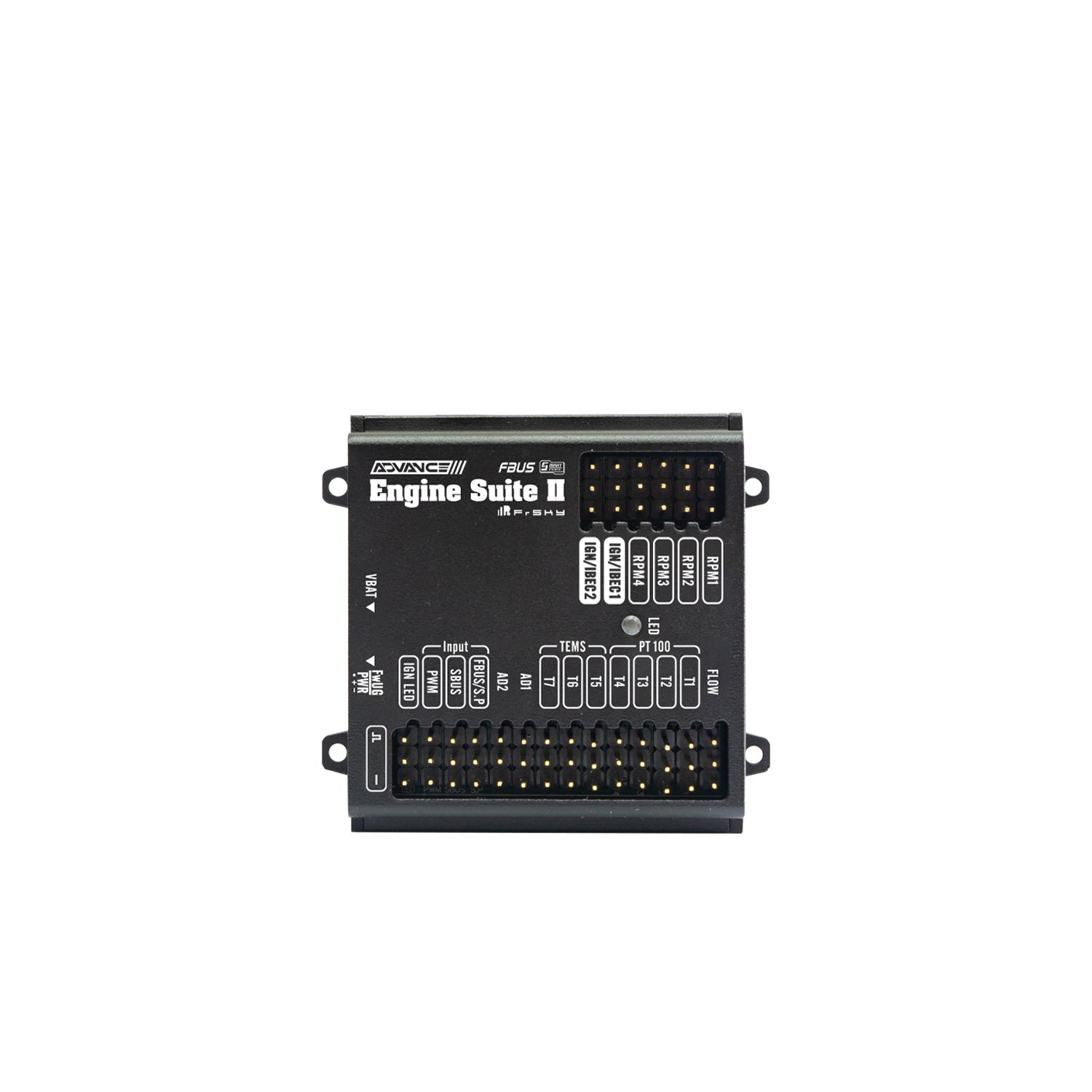

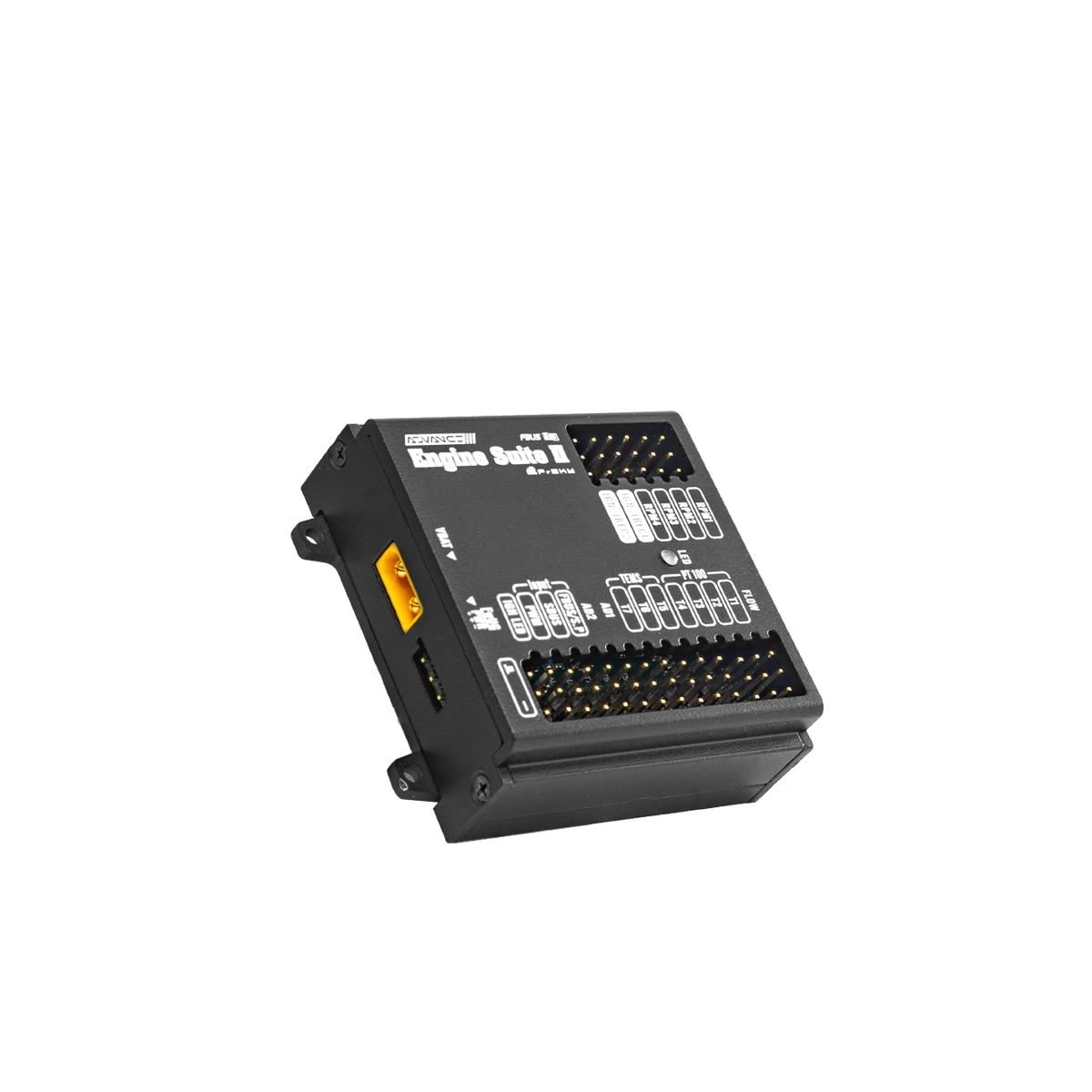

Advanced Engine Suite (AES) is a multi-functional management box suitable for application in airplanes equipped with engines.
Through the VBAT (XT30) power input port, users can only use one battery to power all connected devices, eliminating the trouble of providing an independent power supply for the ignition control unit. AES also adopts a safety solution to avoid potential risks caused by interference between the connected ignition and receiver devices.
The AES module is equipped with a wealth of sensor interfaces, including 2 RPM sensor ports, 1 flowmeter sensor port, and 5 temperature sensor ports(Sensors are required to be purchased separately. Sensor options: TEMS Temperature Sensor [04100427], Flowmeter [03040703] ). In addition, AES also provides 2 AD ports, allowing users to flexibly use different types of AD devices required in your airplane. At the same time, through the FBUS/S. Port feature of the connected receiver, users can monitor the telemetry data in real-time on the transmitter to know the aircraft’s operating status.
Specifications
- Dimension: 50×46.4x18mm (L×W×H)
- Weight: 53.5g
- Battery Voltage Input Range: 4.5-13V
- Battery Input Connector: XT30
- IGN (Ignition Port) Voltage Output Range: 4.5-13V (Sync with the input voltage settings of VBAT.)
- Operating Current: 20mA@5V
- Signal Voltage Level
– RPM1/RPM2 Port: 3V-12V (Requires the driven current＞5mA)
– Flow Port: 3.3V
– AD1/AD2 Port: 0-3.3V
Features
- Ignition Battery Eliminator Design (Independent battery is NOT needed.)
- Anti-interference Capability between Ignition & Receiver Parts
- 5 Ports for Temperature Sensors
2 Ports for RPM Sensors
2 Ports for AD/RPM Sensors
1 Port for Flowmeter Sensors
(Sensors are required to be purchased separately. Sensor options: TEMS Temperature Sensor [04100427], Flowmeter [03040703] ) - 1 Powering Port for Receiver
- 1 Powering Port for Ignition Kill Switch Unit
- Signal Input Ports for FBUS/S.Port (Auto Recognization), SBUS, and PWM
- 1 Battery Input Port with XT30 Connector (Input Range: 4.5-13V)
- Real-Time Configuration Capability (by S.Port of ETHOS radio or FBUS capable receivers)
