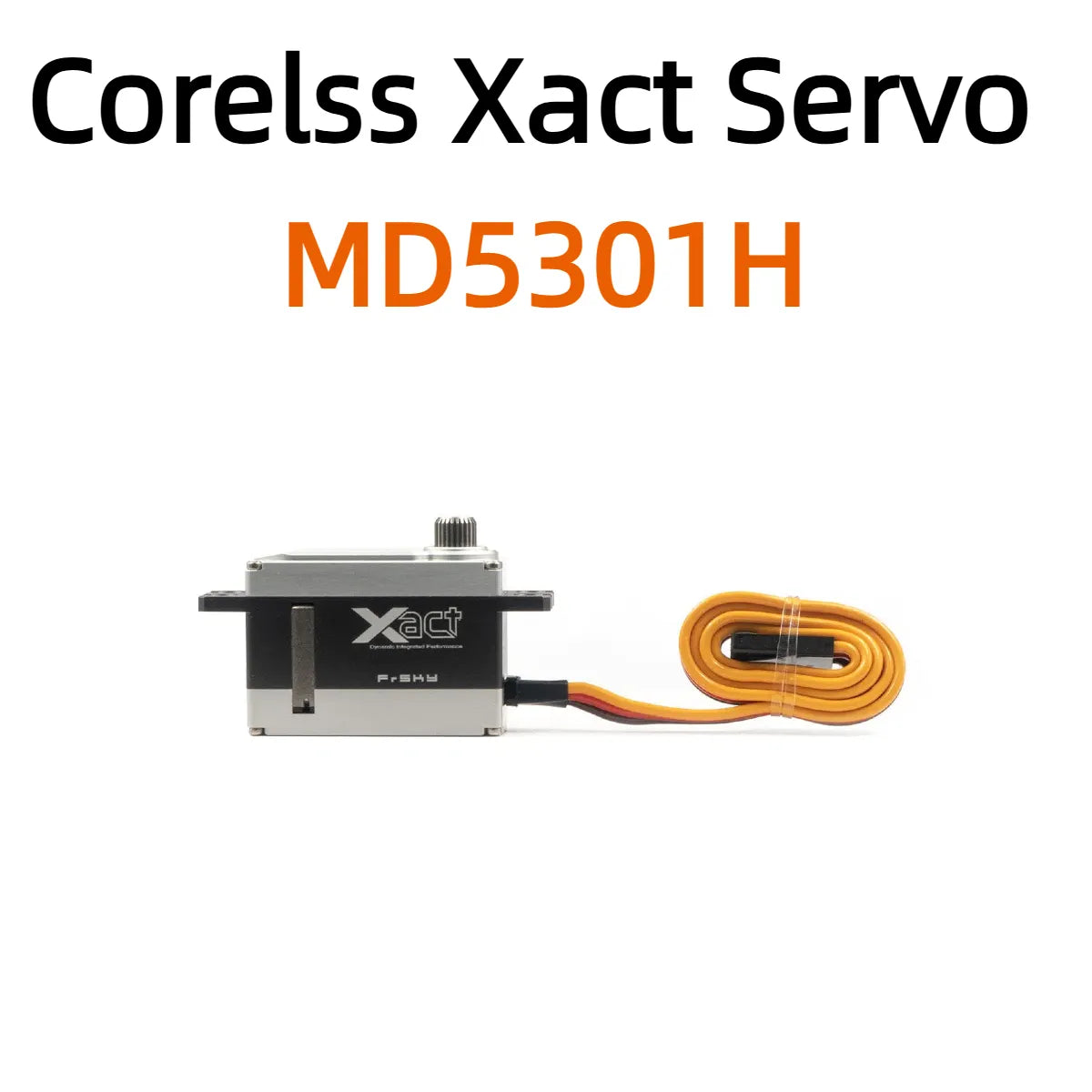

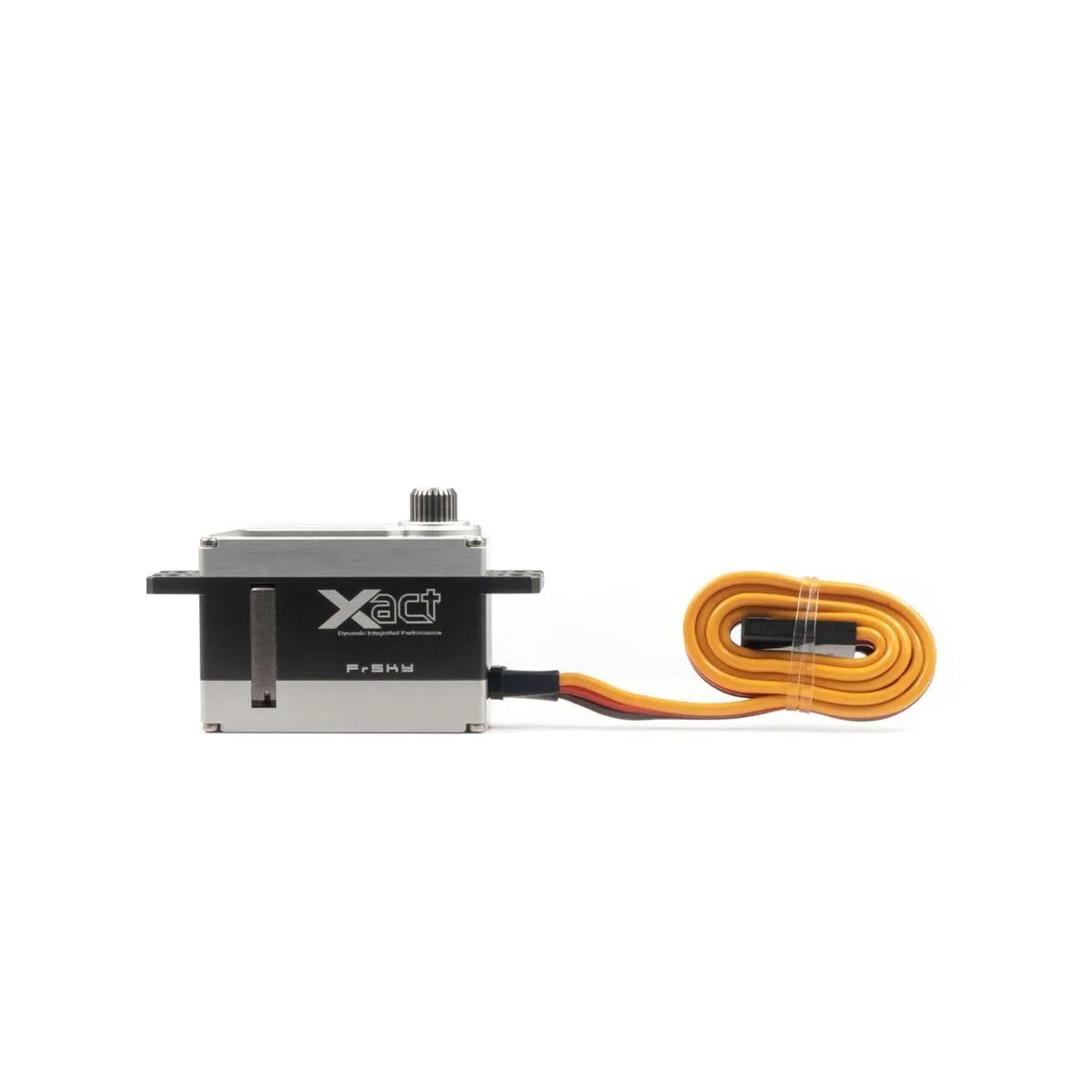

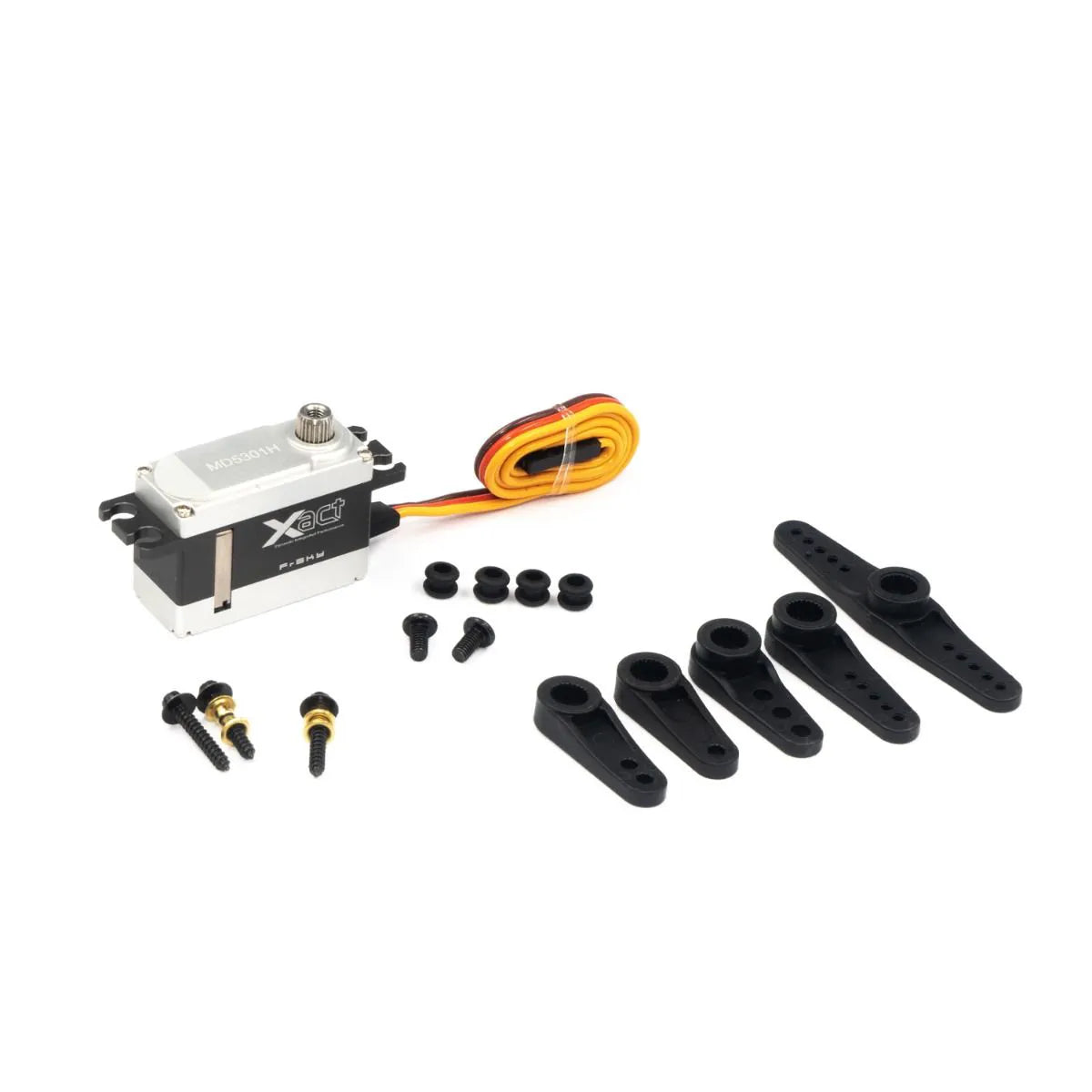

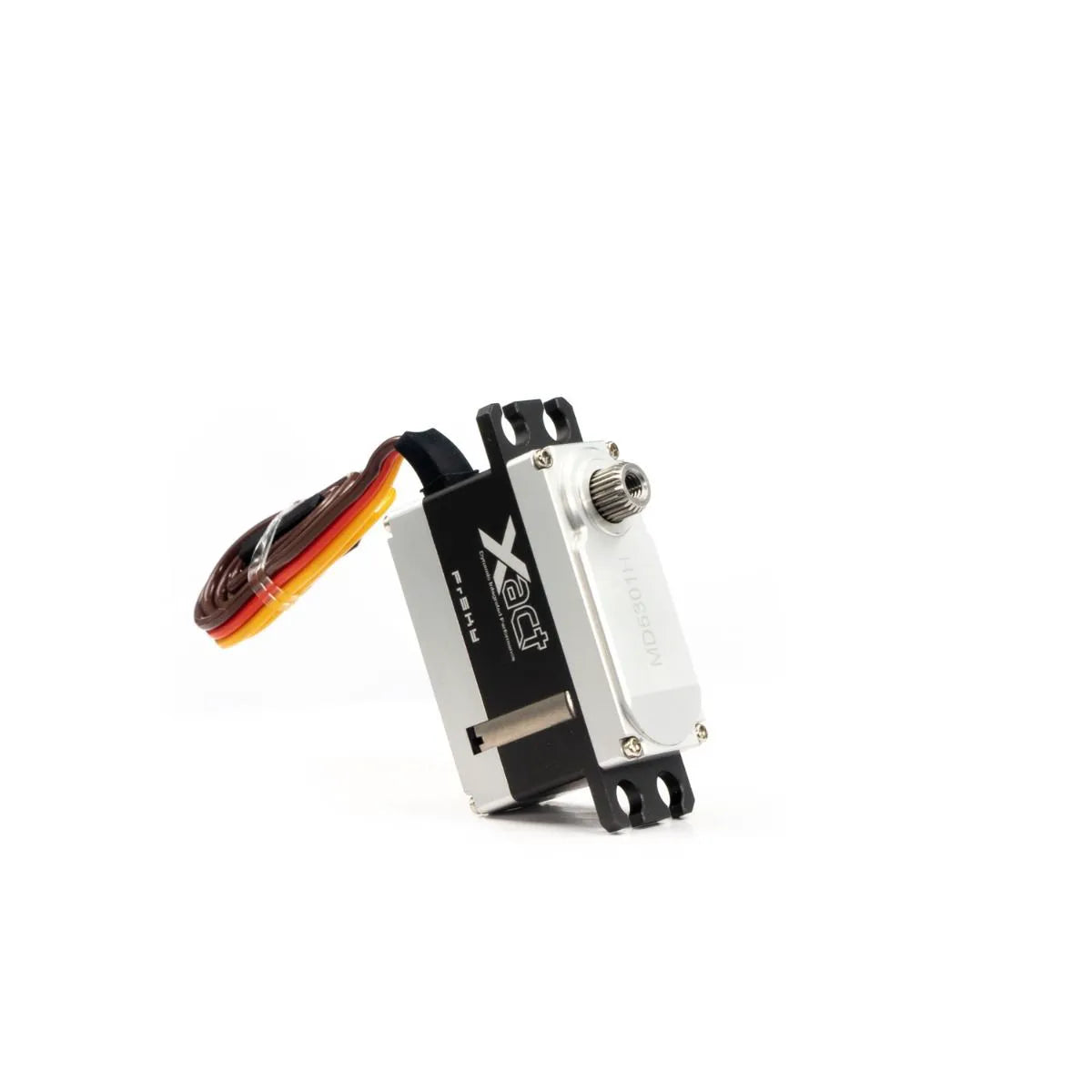

FrSky Corelss Xact 5300 Series Servos MIDI HV 8.4V Capable HV5301/MD5301H

FrSky Corelss Xact 5300 Series Servos MIDI HV 8.4V Capable HV5301/MD5301H

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out
Style

The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. The Xact series servos are available in multiple form factors and configurations to fit many different model types especially where power, reliability, and precision are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.

FEATURES

  • ● Supports Port 2.0 (FBUS) SBUS and PWM protocol
  • ● High durability with metal gear and all-aluminum CNC machined protective case
  • ● 8.4V high voltage capable operation with good speed performance
  • ● Built-in dual precision balls bearing with hall sensor
  • ● Supports over-current and over-hot monitor and alarm
  • ● Updatable firmware ensures the performance superior

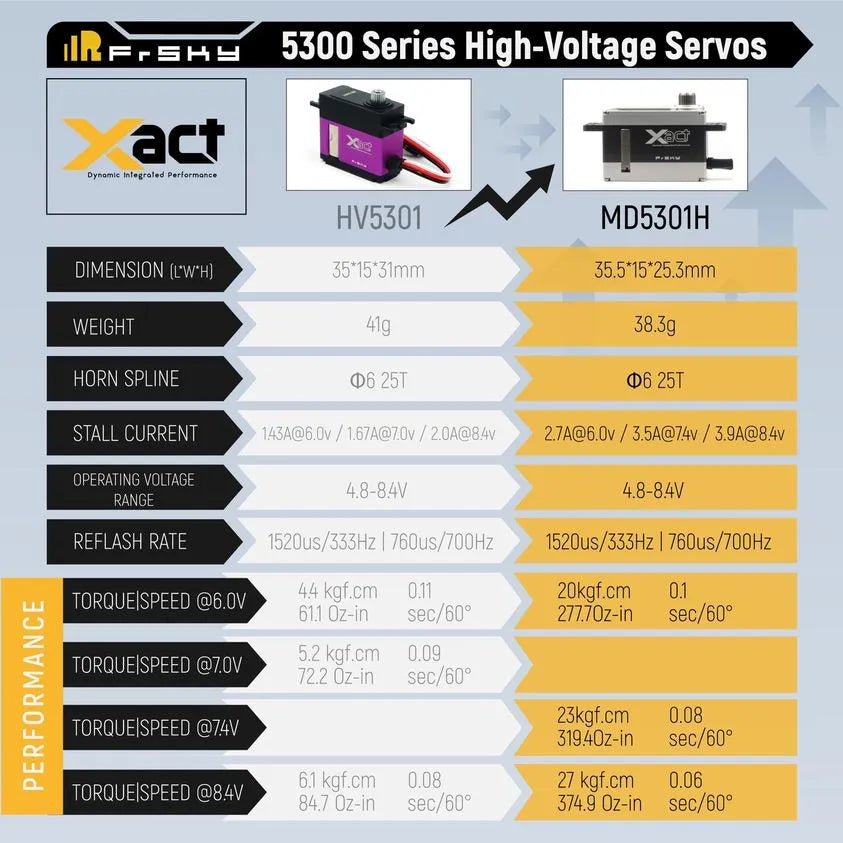

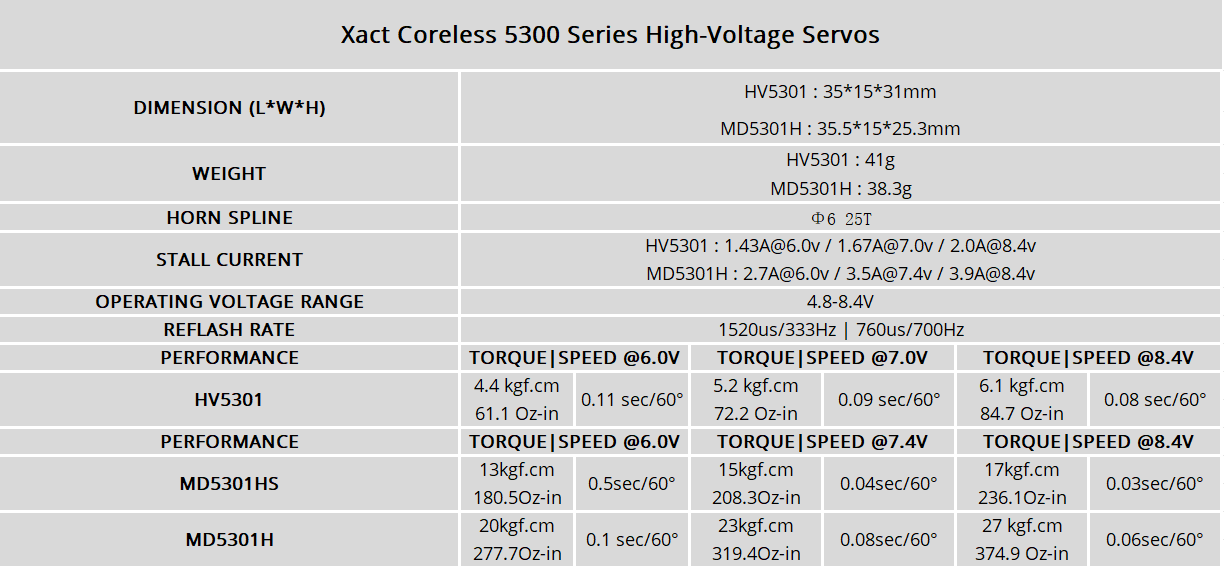

SPECIFICATIONS



Xact Coreless 5300 Series High-Volta

ge Servos

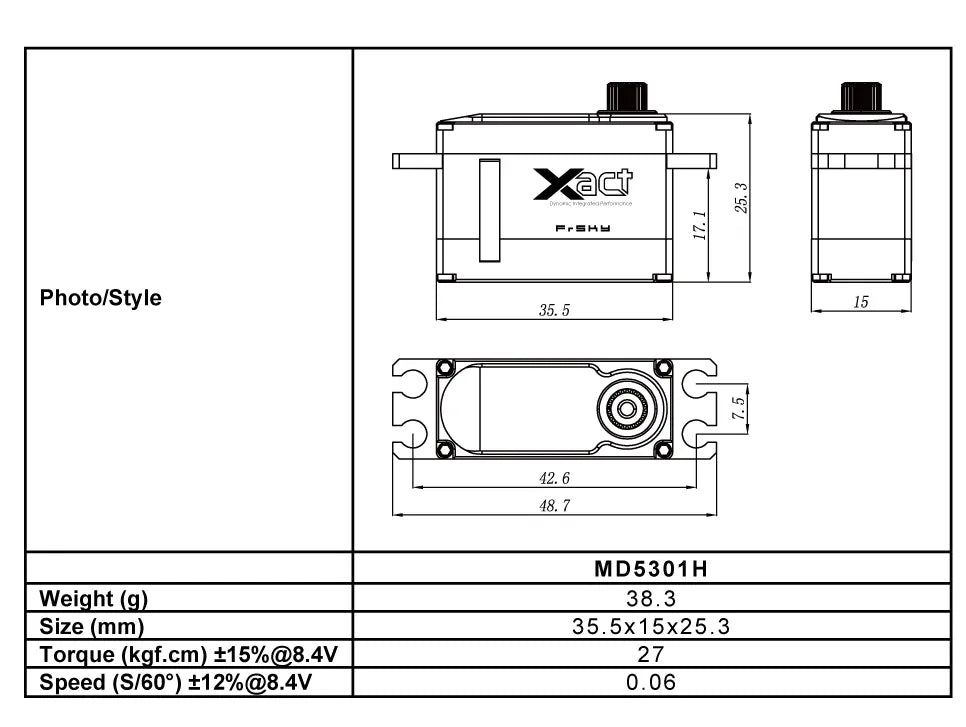

DIMENSION (L*W*H) HV5301 : 35*15*31mm
MD5301H : 35.5*15*25.3mm
WEIGHT HV5301: 41g
MD5301H: 38.3g
HORN SPLINE Φ6 25T
STALL CURRENT HV5301 : 1.43A@6.0v / 1.67A@7.0v / 2.0A@8.4v
MD5301H : 2.7A@6.0v / 3.5A@7.4v / 3.9A@8.4v
OPERATING VOLTAGE RANGE 4.8-8.4V
REFLASH RATE 1520us/333Hz | 760us/700Hz
PERFORMANCE TORQUE|SPEED @6.0V TORQUE|SPEED @7.0V TORQUE|SPEED @8.4V
HV5301 4.4 kgf.cm
61.1 Oz-in
0.11 sec/60° 5.2 kgf.cm
72.2 Oz-in
0.09 sec/60° 6.1 kgf.cm
84.7 Oz-in
0.08 sec/60°
PERFORMANCE TORQUE|SPEED @6.0V TORQUE|SPEED @7.4V TORQUE|SPEED @8.4V
MD5301H 20kgf.cm
277.7Oz-in
0.1 sec/60° 23kgf.cm
319.4Oz-in
0.08sec/60° 27 kgf.cm
374.9 Oz-in
0.06sec/60°

  • ● Torque @ 6.0v – 4.4 kgf.cm / 61.1 Oz-in
  • ● Torque @ 7.0v – 5.2 kgf.cm / 72.2 Oz-in
  • ● Torque @ 8.4v – 6.1 kgf.cm / 84.7 Oz-in
  • ● Speed @ 6.0v – 0.11 sec/60°
  • ● Speed @ 7.0v – 0.09 sec/60°
  • ● Speed @ 8.4v – 0.08 sec/60°
  • ● Dimensions: 35*15*31mm (L*W*H)
  • ● Weight: 41g
  • ● Motor Type: Coreless
  • ● Servo Horn Spline: Φ6 25T
  • ● Stall Current: 1.43A@6.0v / 1.67A@7.0v / 2.0A@8.4v
  • ● Operating Voltage Range: 4.8-8.4V
  • ● Refresh Rate: 1520us/333Hz | 760us/700Hz
Type Model Dimension
(mm)
Weight
(g)
Refresh
Rate
Motor Torque/Speed
(kgf·cm)/(sec/60°) @8.4V
Torque/Speed
(kgf·cm)/(sec/60°)
@4.2V
Torque/Speed
(kgf·cm)/(sec/60°)
@3.7V
Stall Torque
(gf·cm)
Teeth Sensor Protocol
WING HV5611 19*8*23 8.8 1520us/333Hz | 760us/700Hz Coreless 4.1 / 0.05 1.90 / 0.10 1.40 / 0.11   Φ4 15T Potentiometer
F.PORT 2.0
SBUS
PWM
HV5612 19*8*23 8.8 1520us/333Hz | 760us/700Hz Coreless 4.1 / 0.05 1.90 / 0.10 1.40 / 0.11
Type Model Dimension
(mm)
Weight
(g)
Refresh
Rate
Motor Torque/Speed
(kgf·cm)/(sec/60°) @8.4V
Torque/Speed
(kgf·cm)/(sec/60°)
@7.0V
Torque/Speed
(kgf·cm)/(sec/60°)
@6.0V
Stall Torque
(gf·cm)
Teeth Sensor Protocol
WING HV5101 28*8*29 18 1520us/333Hz | 760us/700Hz Coreless 6.8 / 0.10  5.8 / 0.13 4.9 / 0.16 46 Φ4 16T Hall Sensor F.PORT 2.0



SBUS

PWM

MICRO HV5201 23*12*29 23 4.2 / 0.04 3.5 / 0.05 3.0 / 0.06 39 Φ5 25T
HV5202  4.8 / 0.06 4.0 / 0.07  3.5 / 0.08
HV5203 8.2 / 0.08 6.8 / 0.09  5.9 / 0.11
MIDI HV5301 35*15*31 41 6.1 / 0.08  5.2 / 0.09 4.4 / 0.11 55 Φ6 25T
STD HV5401 40*20*39 72 8.7 / 0.04  7.2 / 0.05  6.2 / 0.06 163
HV5402 14.8 / 0.08  12.5 / 0.10 11.0 / 0.12
HV5403  26.2 / 0.11 22.0 / 0.12 18.8 / 0.15
HV5404 32.0 / 0.13 26.8 / 0.14 22.9 / 0.17
HV5405 36.8 / 0.19 30.8 / 0.23 26.4 / 0.29
LOW HV5501 41*20*27 58 19.3 / 0.11  16.1 / 0.13  13.8 / 0.15 125
HV5502 11.2 / 0.07 9.8 / 0.08  8.0 / 0.10



INSTRUCTION

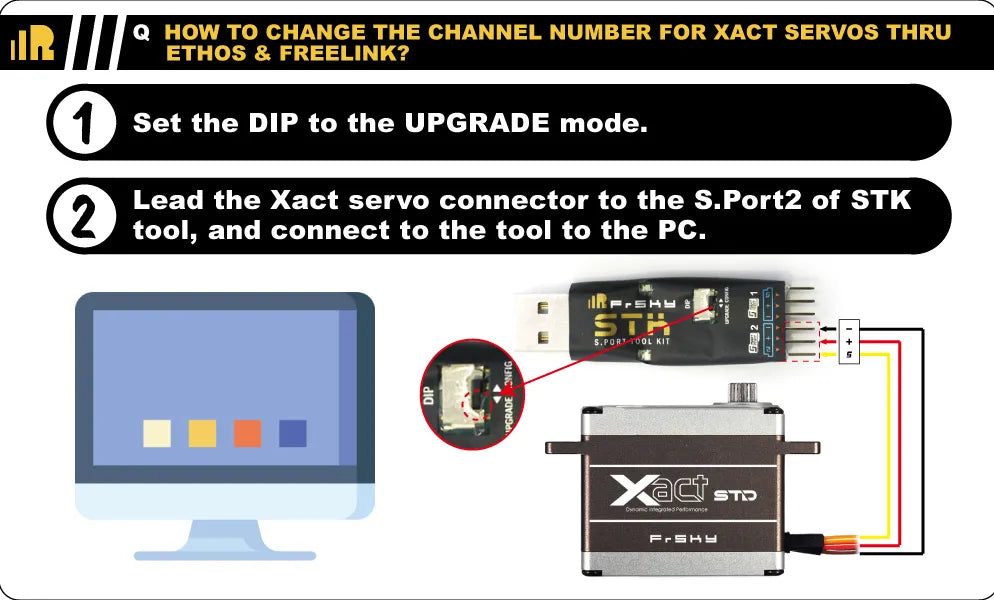

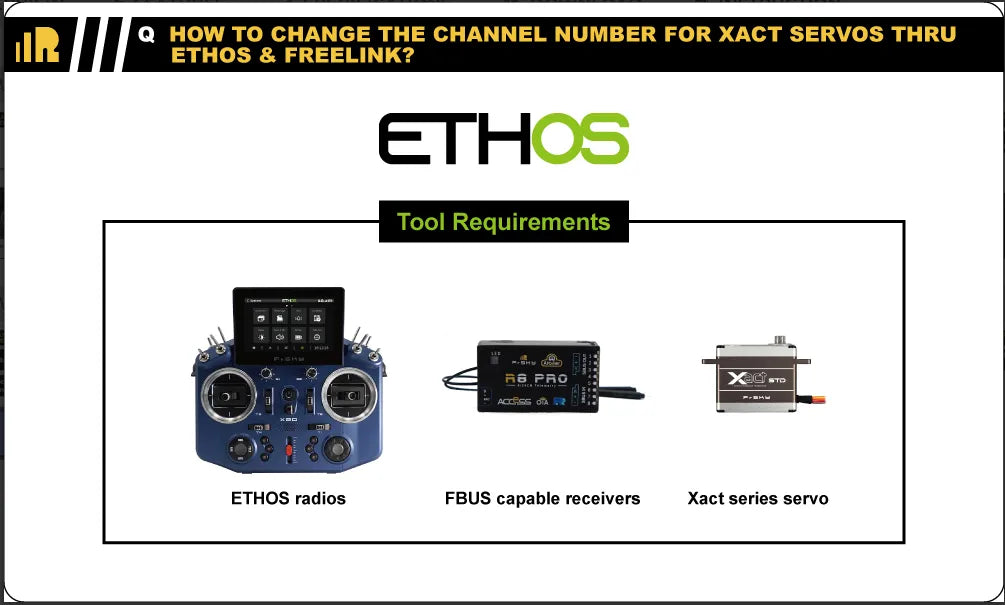

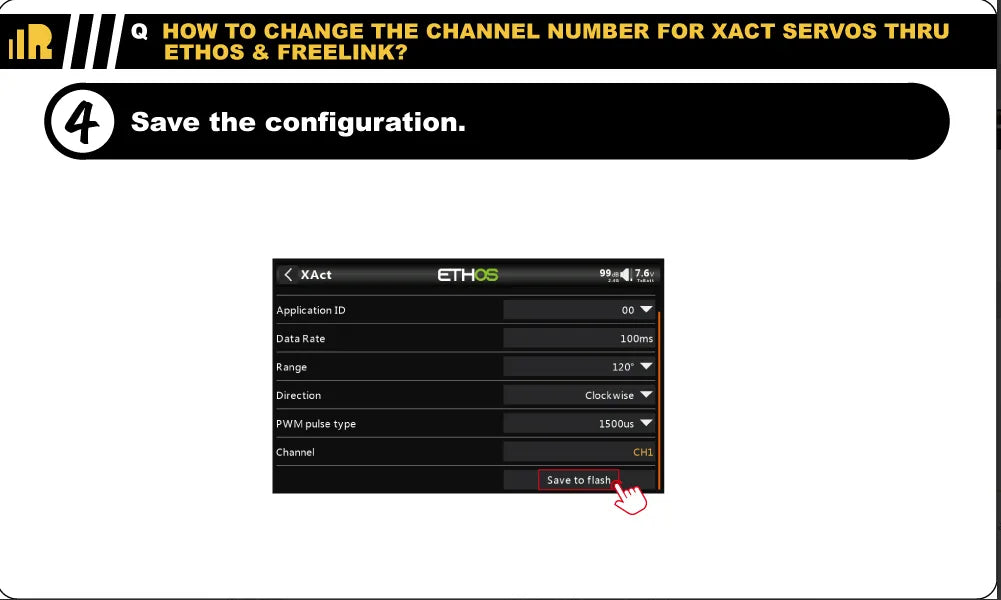

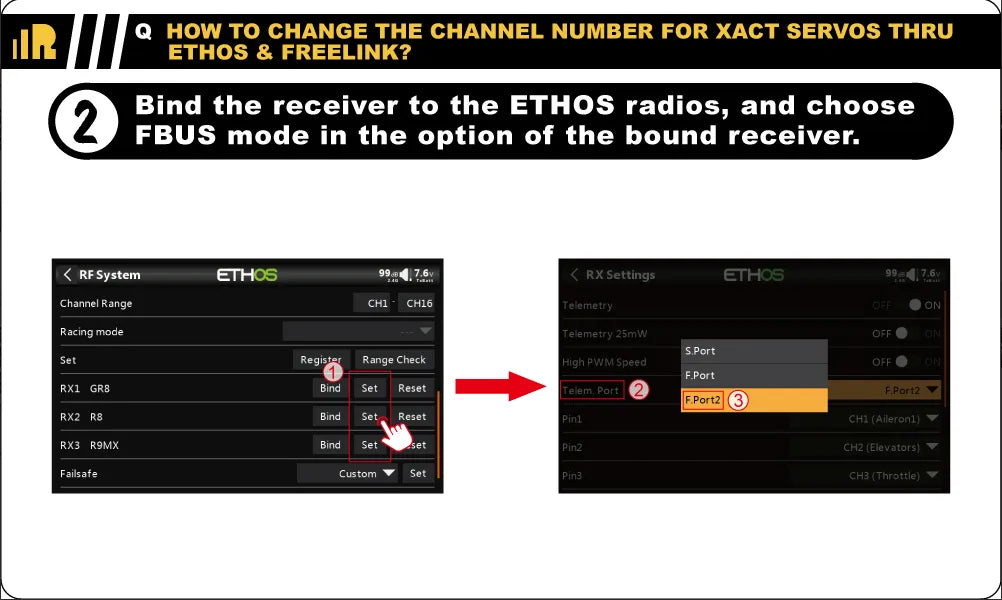

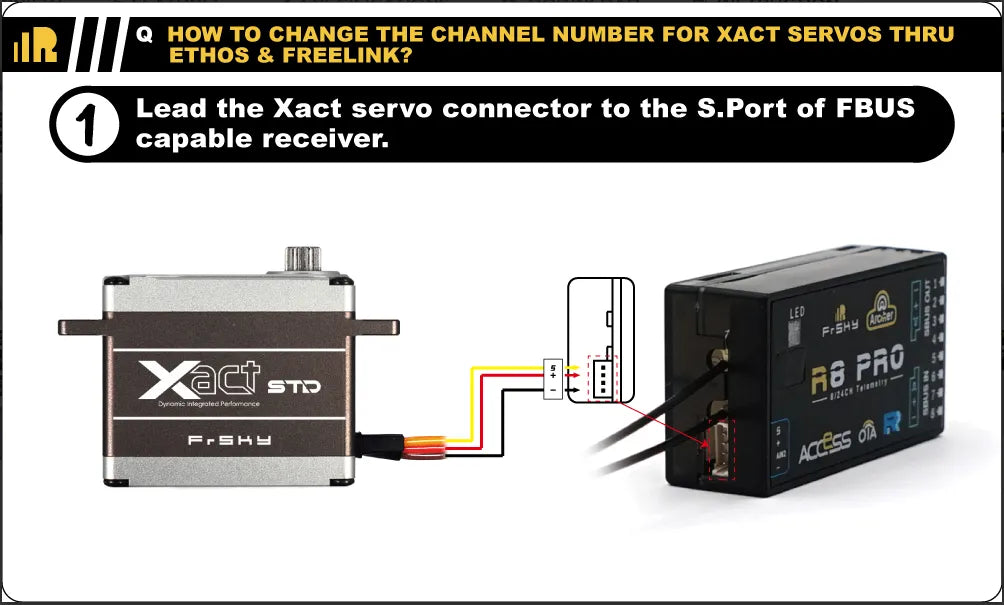

How to Change The Channel Number for XACT Servos through ETHOS?

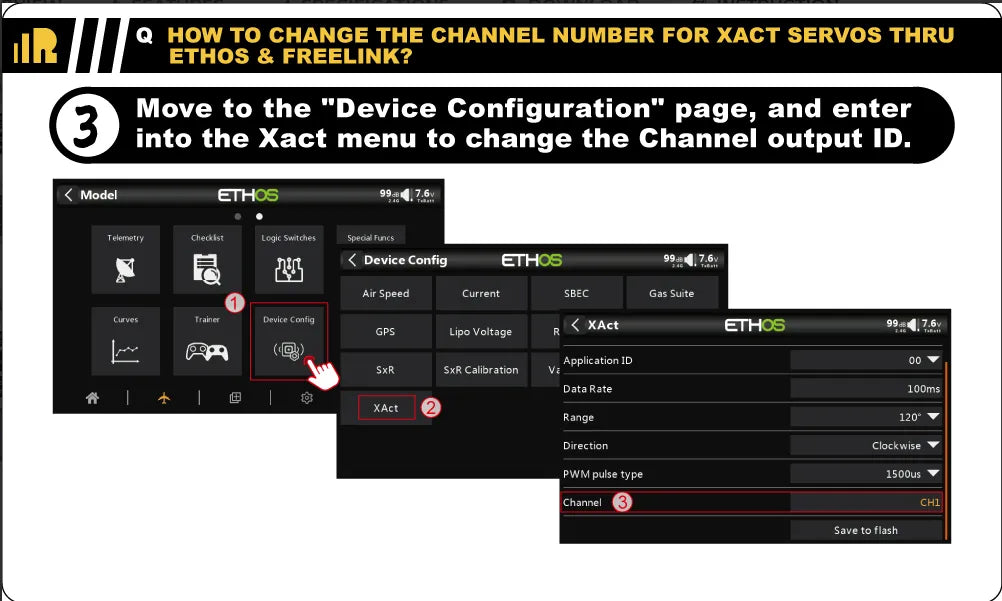

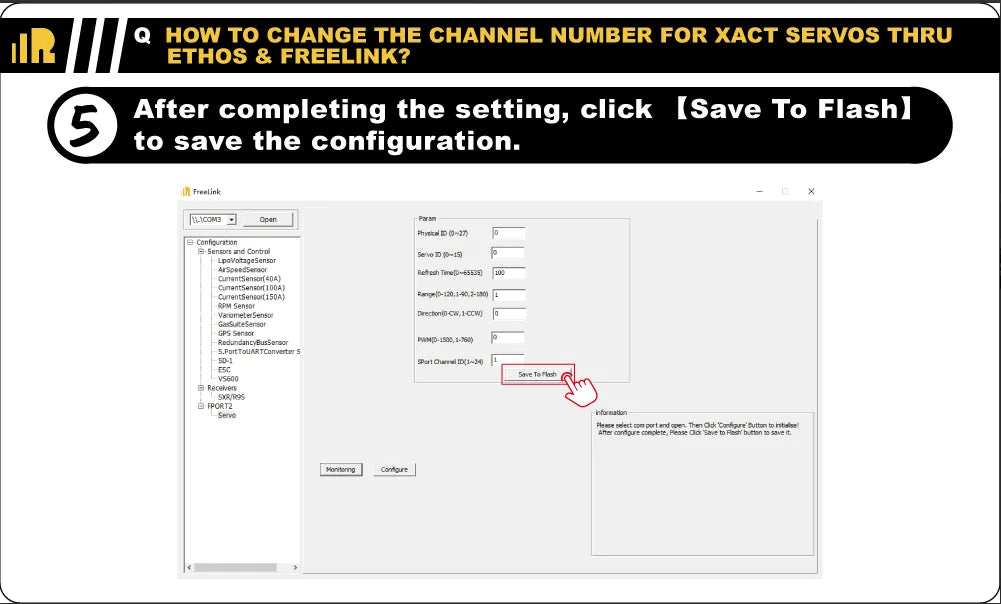

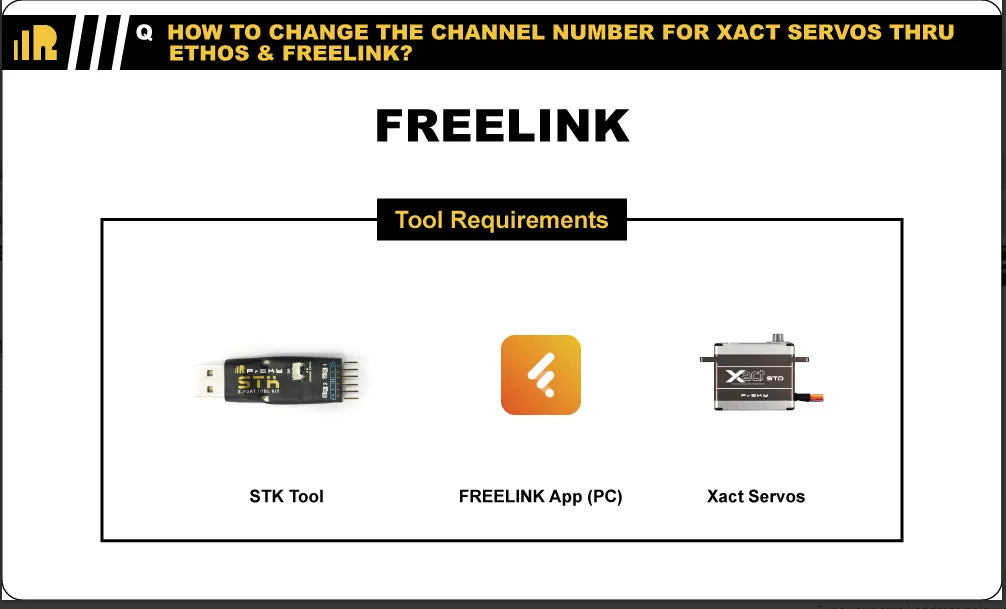

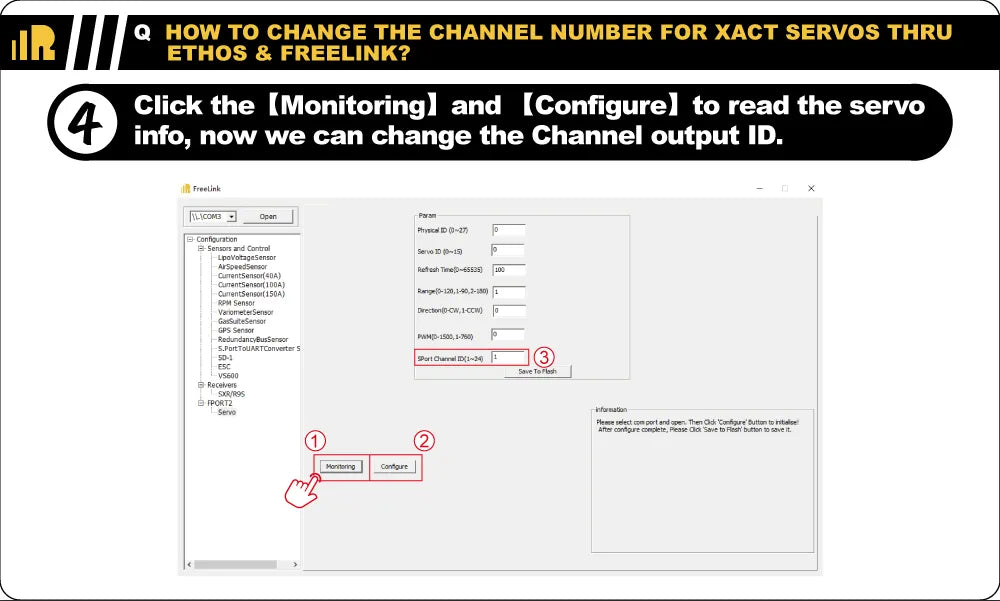

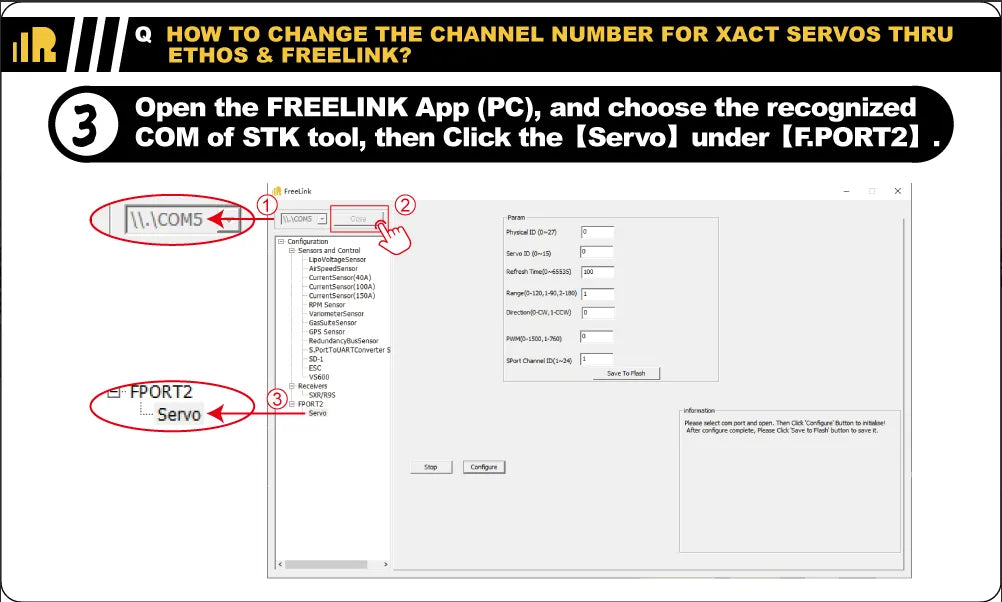

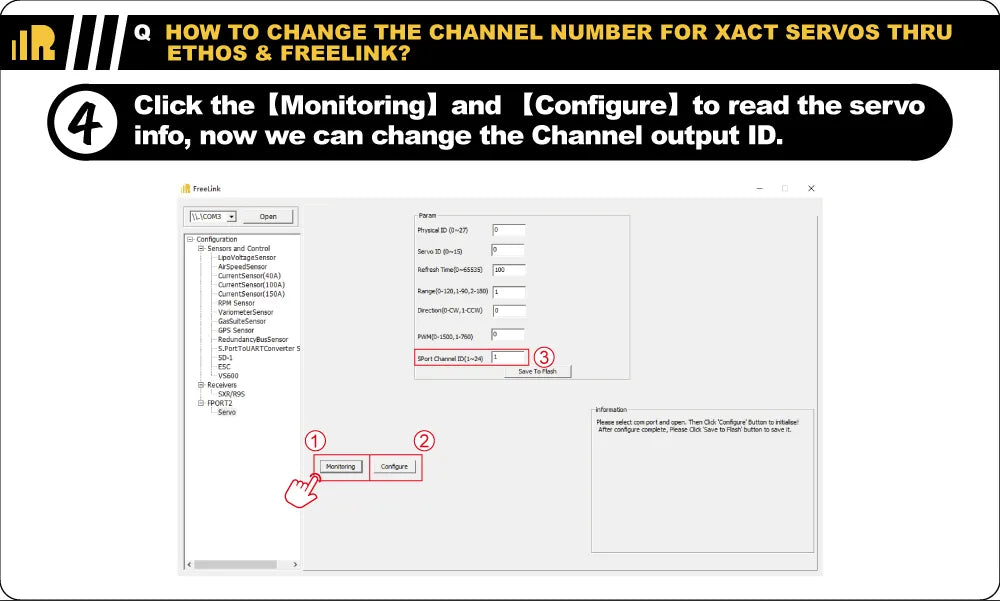

How to Change The Channel Number for XACT Servos through FREELINK?
